+34- Our Price: $74,988
- List Price: $79,995
- Your Discount: $5,007
-
Sleeps 6
-
5 Slides
-
Rear Living AreaRear Entertainment
-
40ft Long
-
12,910 lbs

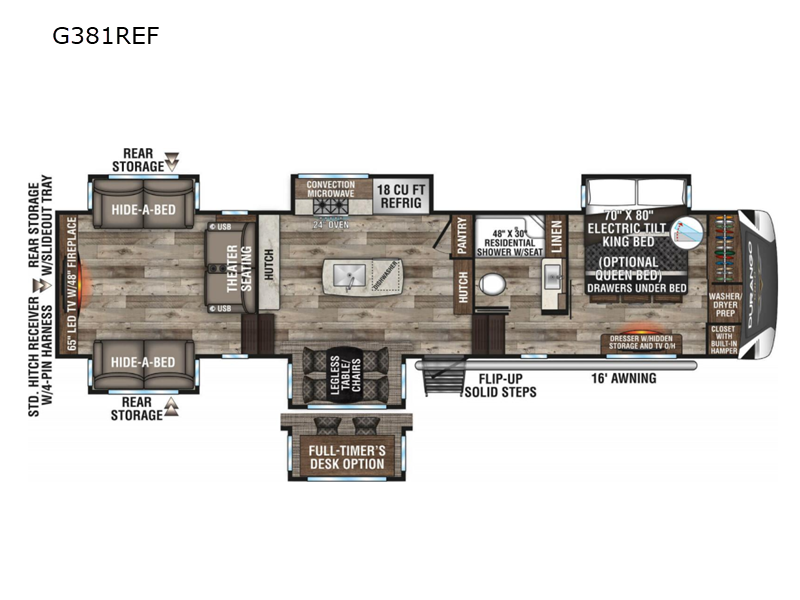

381REF Floorplan
Specifications
| Sleeps | 6 | Slides | 5 |
| Length | 40 ft 6 in | Ext Width | 8 ft 5 in |
| Ext Height | 13 ft 6 in | Int Height | 6 ft 8 in |
| Hitch Weight | 2430 lbs | GVWR | 16000 lbs |
| Dry Weight | 12910 lbs | Cargo Capacity | 3090 lbs |
| Fresh Water Capacity | 76 gals | Grey Water Capacity | 93 gals |
| Black Water Capacity | 53 gals | Tire Size | 16" |
| Furnace BTU | 40000 btu | Available Beds | King |
| Refrigerator Type | Four Door | Refrigerator Size | 18 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 4 |
| Shower Size | 48" x 30" | Number of Awnings | 1 |
| Axle Weight | 10480 lbs | LP Tank Capacity | 30 lbs |
| Water Heater Type | On Demand Tankless | AC BTU | 30000 btu |
| TV Info | LR 65" LED TV, BR 32" LED TV | Awning Info | 18' Power w/LED Light Strip |
| Axle Count | 2 | Washer/Dryer Available | Yes |
| Number of LP Tanks | 2 | Shower Type | Shower w/Seat |
| Electrical Service | 50 amp | VIN | 4EZFV4126M6090517 |
Description
KZ Durango Gold fifth wheel G381REF highlights:
- Separate Living Area
- Rear Entertainment
- Kitchen Island w/Dishwasher
- Legless Table/Chairs
- Exterior Storage Slide Tray
Looking for storage and lots of floor space, well you have found it along the exterior and inside the interior of this fifth wheel. The exterior offers a rear storage slide out tray and a motion-lit, fully finished, heated and sealed basement storage for those larger items like suitcases, golf clubs, totes and an outdoor table. The interior offers a separate rear entertainment/living area with a 65" LED TV and 48" fireplace, theater seating, and two hide-a-bed sofas within slide outs providing even more floor space. Prepare meals in the convection microwave or 24" oven and on the four-burner range for the group, and serve from the hutches and dine at the legless table with four chairs or while relaxing outside under the 16' power awning. And get ready for bed in the full bathroom before falling quickly to sleep on your own electric-tilt king bed in the front bedroom.
With any Durango Gold fifth wheels by KZ you will have flexible, puncture resistant, and reflective Tufflex roofing material, six-sided aluminum framing, and a heated, insulated and enclosed underbelly to travel all year long. Each model features a fully-vented attic system with two attic vents providing vital escape routes for unwanted moisture, and the Durango Towing package which includes a 2" towing receiver hitch with 4-pin wire harness connection, a 3,000 lb. tow rating, and 300 lb. hitch rating. The lithium-ready charging station includes a dual converter allowing you to flip a switch to choose between lithium or lead batteries. The interior offers outstanding features such as theater seating with cupholders, a USB plug, heat, massage and power recline/decline, an under-mount bathroom stainless steel sink with waterfall faucet, bedroom cabinetry with built-in hamper, and a Gold's 70" x 80" walk-around electric-tilt king bed with underbed drawers for extra storage. The list keeps going, choose your favorite Durango Gold today for luxury full-time traveling!
Features
Standard Features (2021)
Construction
- 101" Wide-Body Construction
- Extra-Reinforced Heavy-Duty Front Fiberglass Cap
- Radius Front Cap (for increased turning radius on short bed trucks)
- 2" x 3" Welded Aluminum Fore & Aft Floor Joists
- 2" x 2" Welded Aluminum Sidewall Framing
- 5" Welded Aluminum Roof Trusses
- LCI® Hydraulic Slide System w/Selector Valves
- Steel Powder Coated I-Beam w/Drop-Frame Pass-Thru Storage (offering 160-180 CU FT, F/P specific)
- Lamilux® High-Gloss Fiberglass
- All-Weather Insulation Package (roof, floor, ceiling, endcaps & tanks to R-38)
- R-11 2" Sidewalls (w/EGS metal backing strips to hold all int. cabinets)
- 1-Piece ABS Slideroom Bottoms; Slideroom Floors Insulated to R-24
- 1-Piece, Seamless, Walk-on, Tufflex Roofing Material w/20-Year Warranty - More Info
- 45 Degree Aluminum Roof Edge
- Fully-Vented Attic System
- 3/8" Roof Decking
- 5/8" Tongue & Groove, Screwed & Glued Plywood Floor Decking
- Full Drop-Frame Aluminum Skirt on Doorside
- Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drainlines are located above all insulation)
- Fully-Heated & Enclosed Underbelly
- Double Insulated & Heated Holding Tanks (R-38 above & below tanks)
Exterior
- 7,000 LB Dexter® Axles w/Self-Adjusting Brakes & Height Adjusting Hangers
- 8-Lug Heavy-Duty Aluminum Rims w/16" G-Range Radial Tires
- 100% Exterior LED Running Lights & Taillights
- Electric Awning w/Light Strip
- Propane Bottles on Same Side of Coach for Easy Access (2 x 30 LB each)
- Sealed Battery Storage Compartment on Side of Coach (no battery boxes required)
- Triple Front Slam Latch Baggage Doors
- Slam Latch Baggage Doors w/Dual Locks
- Partially Painted Front Cap w/LED Accent Lights
- Frameless Windows
- 3" x 14" In-Floor Straight Line Heating System
- LED Docking Light & Sewer Hookup Light
- Swing-Away Assist Grab Handle
- Underneath Spare Tire w/Hoist
- Roof Ladder
- Deluxe Heated Water Convenience Center (incl. black tank flush, power fresh tank water fill, winterizing system, outside shower & dry camping water siphon system)
- Fully-Finished, Heated & Sealed Basement Storage Compartment
- Pre-Wire for Exterior TV
Living Room/Kitchen
- Residential-Size Pullout Trashcan in Kitchen
- Pullout Spice Rack (most models)
- Dual Pullout Pots & Pans Drawers under Refrigerator & Stove (where available)
- Removable Silverware Tray
- Storage Shelf under Kitchen Sink
- All Kitchen OH Cabinets have Shelf
- Heavy-Duty 100 LB Drawer Glides on Every Drawer
- Baltic Birch Drawer Boxes
- LED-Lighted Kitchen Cabinet Toe Kicks (most models)
- Large Dining Table w/Pullout Leaf, 2 Storage Seat Chairs & 2 Folding Chairs
- Kitchen Window (most models)
- Hidden Cabinet Door Hinges
- 5" Cabinet Hardware
- 3/8" Re-Bond Carpet Pad w/22 OZ Residential Carpet
- XL Toggle Light Switches
- Power Vent Fan in Second Bath (G366FBT, G385FLF, G386FLF)
- All LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
Bedroom/Bathroom
- Residential 1-Piece Fiberglass Shower Stall w/Built-In Seat & Glass Doors
- Shower Skylight
- XL Solid Surface Bath Vanity w/Stainless Steel Sink
- Porcelain Foot-Flush Toilet
- All LED Lights in Bed & Bath w/Multiple Switches
- Heavy-Duty 100 LB Drawer Glides on all Drawers
- Extra-Wide Bed & Bath Hallway (most models)
- Pocket Door from Hall to Bath (most models)
- Bath Towel Bar & Towel Loop (where applicable)
- 12V Fan
- XL Bath Linen Closet
- XL Deep Bedroom Walk-In Closet
- Dual Washer & Dryer Prep
- XL Under-Bed Storage
- Luxurious Bedspread & Pillow Shams
Options
Exterior
- Dual Pane Windows (frameless)
- Wireless Backup Camera - Observation & Vision S
- “Off the Grid” Solar Package by Xantrex (220W solar panel, 30A MPPT solar charge controller w/MPPT remote panel, 2,000W True Sine Wave Inverter w/all outlets "hot")*
- Xantrex 125AH Lithium Battery w/Bluetooth App Controls (monitors charge rate, discharge rate, current level, battery conditions, temperature & includes built-in safety shut down at 10%)
- Flex-Air Pin Box
- 2nd LED Lighted Power Awning (G356RLT, G366FBT, G382MBQ, G383RLQ, G386FLF, G387FLF)
- Generator Prep (includes start/stop harness)
- 6.5KW LP Onan Generator (requires prep)
- Slideout Cover Package (triple slides)
- Slideout Cover Package (quad slides)
- Slideout Cover Package (5 slides)
- Heat Pumps on Both A/Cs
- 3rd A/C Ducted (15,000 BTU)
- 32" Exterior TV w/Bracket
Interior
- Full-Timer’s Hardwood Desk IPO Dinette Table
- House Residential Refrigerator w/2,000W Inverter (18 CU FT) IPO 18 CU FT Gas/Electric Refrigerator (N/A CSA option)
- Power Vent Fan in Bathroom
- Serta Comfort Foam 60" x 80" Queen Mattress (electric tilt)
- Theater Seating IPO Hide-A-Bed (G382MBQ)
- Ottoman w/Storage
*Cannot get House Residential Refrigerator w/“Off the Grid” Solar Package
KZ Advantage Package (Mandatory)
Exterior
- 6-Point Hydraulic Auto Leveling
- Polar White High Gloss Gelcoat Exterior Fiberglass
- Painted Fiberglass Front Cap
- 6-Sided Aluminum Framing
- Flip-Up Entry Steps (main entry)
- 50 AMP Service
- (2) 15K Ducted A/Cs w/Quiet Cool Ducting System
- 5/8" Tongue & Groove Plywood Floor
- Key-Alike for Baggage & Entry Doors
- Friction Hinge Entry Door w/Shade Prep & Screenshot Features
- X-Large Folding Grab Handle
- Undermount Spare Tire
- Equa-Flex® Suspension
- Nitrogen-Filled Tires
- Battery Disconnect
- Black Tank Flush
- Backup Camera Prep
- Roof-Mounted Solar Prep w/Connection
- All Weather Insulation Package (heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear)
- 2" Towing Receiver Hitch w/4 Pin Wire Harness Connection (3,000 LB tow rating & 300 LB hitch rating)
- Roof Ladder
- Fully-Vented Attic System w/2 Attic Vents
- Leash Latch w/ Bonus Beverage Opener
- Metal Latches on Baggage Doors
Interior
- Luxury Woven Vinyl Flooring in Slideouts (marine grade)
- Maple Glazed Cabinetry
- Glazed Solid Hardwood Slideout Fascia
- Solid Surface Countertops w/Deep Undermount Stainless Steel Kitchen Sink w/Sink Cover
- 24" Oven w/4 Burner Range
- 30" Convection Microwave
- Stainless Steel Dishwasher
- Custom Shoe Rack in Closet (most models)
- Central Vac System w/Attachments
- Power Vent Fan in Main Area
- Theater Seating w/Powered Recline, Heat & Massage Features
- Tri-Fold Sleeper Sofa
- Solid Hardwood Dinette Table (legless) w/4 Chairs
- (3) Motion Sensor Lights (entry, closet, basement)
- 40" Wideview Fireplace
- 50" LED TV
- Multiple Media Stereo w/DVD/Bluetooth & 3 Zone Speaker Controls
- (2) 6.5" Interior Speakers
- 12V Dual USB Charging Station
- Dual Day/Night Roller Shades
- Porcelain Foot-Flush Toilet
- Stainless Steel Bathroom Sink w/Waterfall Faucet
- Plywood Bed Base
- Serta Comfort Foam 70" x 80" King Mattress (electric tilt)
- Bedroom Fireplace
- 32" Bedroom LED TV
- 7' Tall Main Slide Ceiling Height
- Pocket Door for Bathroom & Bedroom
- Soft Auto Close Drawer Guides
- Soft Auto Close Hinges for Cabinet Doors
- Ceiling Fan in Living Room (most models)
KZ Convenience Package (Mandatory)
Exterior
- KZ Engage Powered by OneControl w/7" Screen (control system monitors tank levels & battery levels, controls sliderooms, leveling system, awnings, dimmable interior lighting, HVAC controls: includes Wi-Fi prep & connect anywhere prep for full function access by mobile device & includes TPMS system prep)
- Power Awning w/LED Light Strip
- 16" G-Range Tires w/Aluminum Wheels
- Magnetic Catches for Baggage Doors
- Omnidirectional HDTV Antenna w/Wi-Fi Prep
- LED Lights in Exterior Speakers
Interior
- Residential-Grade Linoleum
- 18 CU FT Gas/Electric Refrigerator w/Temperature Controls
- Matte Black Residential Kitchen Faucet w/Spring Sprayer
- Surfex Wood Step in FW Hallway
- Wood Accent Trim on Corners/Entry Doors
- Vision S Prep (blind spot monitoring)
- 40,000 BTU Furnace
- On-Demand Tankless Water Heater
- Lithium Battery Ready
Bonus Features
- 2-Year Limited Warranty (see flyer)
- Lightest high-profile, wide body, luxury fifth wheels in the industry (average weight is 12,000 LBS)
- KZ has received the Dealer Satisfaction Index Award for 19 years
- KZ’s 48 years of stable, dedicated manufacturing experience, coupled with its predominantly Amish workforce, heritage and commitment to superb quality, allow us to produce the best value luxury fifth wheel available.
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
